Non-Asbestos Gland Packings

STYLE - 1041 EXPANDED GRAPHITE GLAND PACKINGS

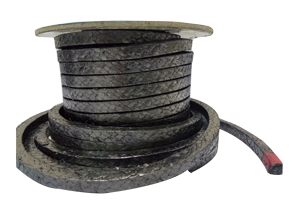

Expanded Graphite Packings
  • Construction: Diagonally braided from pure expanded flexible graphite yarn.

Technical Parameters:

  • Temperature: -240oC to +650oC
  • pH Range: 0-14
  • Pressure: 300 Kg/Cm2
  • Velocity: 25 Meters / Second
  • APPLICATIONS: Very flexible and supple packing, excellent alternative to pre-formed graphite-rings. The benefits of this packing are low friction and excellent thermal conductivity. It can be used with high temperature & high pressure steam, hot water, oils, alkalis, acids, solvents, cryogenic liquids, paints varnishes on pumps & valves in high temperature and high pressure environments prevailing in power plants, boiler house, refineries, steel mills, petrochemicals industries etc. Our company manufacturers, suppliers and exporters of graphite gland packing in Mumbai India.
  • OTHER EXPANDED GRAPHITE PACKINGS: Braided expanded flexible Graphite packing reinforced with Inconel wire or SS wire. Braided expanded flexible Graphite packing with silicon / rubber core

NOTE: These packings can be made available upon request.

Water Acidic Gas Concentrated Alkalis Mineral Oil & Grease
Steam Volatile Hydrocarbon Solvents Paint Varnish
Hydrogen   Neutral Solutions Amines & Nitrates Bitumen
Oxygen   Concentrated Acids Synthetic oils Abrasive media
Recommended Limited Recommendable
