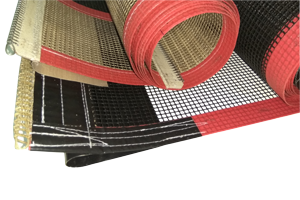

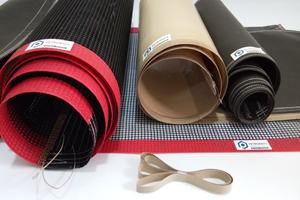

PTFE COATED CONVEYOR BELTS

Petrorays excels in manufacturing high performance PTFE conveyor belts for high temperature applications

Our Conveyor belts are immune to fungus, are self-lubricating, non-flammable, non-brittle, are non-toxic & non-wettable and hence are highly used in food & pharmaceutical industry. We are manufacturers and suppliers of ptfe coated belts in Mumbai, India to all over the world.

These belts can operate in continuous working temperatures from -200^oC to +280^oC.

Physical / Mechanical Properties

Excellent non-stick properties.
High tensile wear & tear strength.
Very low elongation at break.
Light - weight - requires very low power to drive.

Electrical Properties

Unsurpassed dielectric properties, makes Petrorays belts a suitable choice for use in micro-wave Ovens.
Distinguish electrical insulation properties.

Chemical Properties

Inert to almost all chemicals, paints & solvents.
Non-wettable, low moisture absorption.
Immune to fumes & fungus.
Non-toxic - Safe & hygiene.

Thermal

Conserves heat energy during conveying through oven or dryer.
Doesn't loose energy through radiation.
Working temperature -200^oC to 260^oC.

THICKNESS AVAILABLE & THEIR TECHNICAL SPECIFICATIONS
Thickness		Weight	Breaking Strength(KG/2.54CM)
Mil / Colour	mm	Gms/ mtr²	WARP	WEFT
6 Mil (Brown)	0.15	250	65	65
10 Mil (Brown)	0.25	520	80	70
10 Mil (BLack)	0.25	520	100	90
14 Mil (Brown)	0.35	660	125	125
14 Mil (Black)	0.35	650	150	110
36 Mil Leno Mesh (Black)	0.9	465	100	90
36 Mil Leno Mesh (Brown)	0.9	550	90	150
22 Mil (Brown)	0.55	1000	130	120
28 Mil (Brown)	0.67	1200	140	130

FOOD INDUSTRY

Petrorays Conveyor belts used in baking & food processing.
Microwave cooking.
Petrorays Conveyor belts used in conveying - Confectionery, chocolates, biscuits, breads etc.

PACKAGING INSUSTRY
