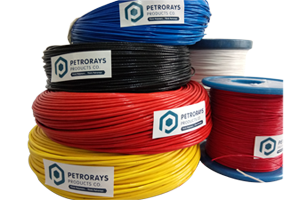

PTFE INSULATED WIRES

Petrorays brings to you superior quality of ptfe Wires, cables & sleeves. Teflon wires & cables are available in different types. PTFE wires & cables are manufactured as per the international quality standards. We are Manufacturers, suppliers and exporters of ptfe wire in various sizes & specifications.

The main attributes of our Teflon Wires are as follows:

Sizes: AWG 06 to AWG 30, or as per requirements
Conductor: Silver plated Copper, Nickel Plated copper, bare copper wires etc.
Voltage: 250-V, 600-V, 1000-V
Insulation: Spirally wrapped and fused PTFE Insulation.
Temperature: -65^oC to +260^oC
Approvals: LCSO
MFG as per: JSS-51034 (MIL-W-16878)

High temperature light fittings & Air-field lighting equipment
Load cells
Thermocouple cables & compensating cables
Pressure transducers
High temperature control valves
Infra-red & U.V. sensing equipment
Furnace, Heaters & oven wiring
Electro-medical / Neuro-surgical equipment
Transformers, Rectifiers, Reactors & process Control
Electronic Test Equipment & Communication Equipment
Equipment for Aerospace, Navy & Meteorology
Refrigeration equipment

Working Temperature -65^oC to 200^oC.
Better mechanical and electrical properties.
Resistance to solder iron damage.
Resistance to most of the Chemicals.
Resistance to fire, sunlight, moisture.
Corona resistance.
Higher Reliability.
Highly Resistative to U.V Rays.
Non contamination, non-toxic and bio compatible.

Red
Yellow
Blue
Brown
Violet
Black
Orange
Green
Gray
Pink

PTFE INSULATED EQUIPMENTS WIRES
Size AWG	Number & Diameter of Strands		Dia of conductor	Cross sectional	Max Resist of conductor	Current ratings	ET (250-VOLTS)		E (600-VOLTS)		EE (1000-VOLTS)
							Dia Over Insulation		Dia Over Insulation		Dia Over Insulation
-	AWG	mm	mm	area (mm²)	ohms/Km @ 20^oC	(amp)	Min	Max	Min	Max	Min	Max
	7/40	7/0.08	0.24	0.035	570.90	0.7	0.50	0.60	0.66	0.86	0.91	1.11
30	1/30	1/0.25	0.25	0.049	356.40	1.0	0.50	0.60	0.66	0.86	0.91	1.11
30	7/38	7/0.10	0.30	0.055	332.30	1.0	0.55	0.66	0.71	0.91	0.96	1.16
28	1/28	1/0.32	0.32	0.080	224.40	2.1	0.58	0.68	0.73	0.93	0.99	1.19
28	7/36	7/0.13	0.38	0.093	210.50	2.1	0.63	0.73	0.78	0.99	1.04	1.24
26	1/26	1/0.40	0.40	0.125	140.09	3.0	0.66	0.76	0.81	1.01	1.06	1.27
26	7/34	7/0.16	0.48	0.140	133.70	3.0	0.73	0.83	0.88	1.09	1.14	1.34
26	19/38	19/0.10	0.51	0.149	126.70	3.0	0.73	0.83	0.88	1.09	1.14	1.34
24	1/24	1/0.51	0.51	0.204	88.40	4.0	0.76	0.86	0.91	1.11	1.16	1.37
24	7/32	7/0.20	0.60	0.219	83.20	4.0	0.86	0.96	1.01	1.21	1.27	1.47
24	19/36	19/0.13	0.65	0.252	80.20	4.0	0.86	0.96	1.01	1.21	1.27	1.47
22	1/22	1/0.64	0.64	0.321	56.10	7.3	0.88	1.01	1.04	1.27	1.29	1.52
22	7/30	7/0.25	0.75	0.343	52.50	7.3	1.01	1.11	1.16	1.37	1.42	1.62
22	19/34	19/0.16	0.80	0.382	49.80	7.3	1.01	1.11	1.16	1.37	1.42	1.62
20	1/20	1/0.81	0.81	0.515	34.70	11.0	1.06	1.16	1.21	1.42	1.47	1.67
20	7/28	7/0.32	0.96	0.562	33.00	11.0	1.21	1.32	1.37	1.57	1.62	1.82
20	19/32	19/0.20	1.00	0.596	30.30	11.0	1.21	1.32	1.37	1.57	1.62	1.82
18	1/18	1/1.02	1.02	0.816	21.80	11.0	-	-	1.42	1.68	1.68	1.93
18	7/26	7/0.40	1.22	0.879	20.70	16.0	-	-	1.63	1.87	1.87	2.13
18	19/30	19/0.25	1.25	0.932	19.10	16.0	-	-	1.63	1.87	1.87	2.13
16	19/29	19/0.29	1.45	1.254	14.90	22.0	-	-	1.85	2.20	2.10	2.41
15	19/28	19/0.32	1.60	1.528	12.09	26.0	-	-	1.98	2.28	2.26	2.54
14	19/27	19/0.36	1.80	1.933	9.50	32.0	-	-	2.23	2.59	2.48	2.89
13	19/26	19/0.40	2.00	2.387	7.59	35.0	-	-	2.43	2.74	2.66	3.02
12	19/25	19/0.45	2.25	3.021	6.00	41.0	-	-	2.71	3.07	2.97	3.37
12	37/28	37/0.32	2.24	2.975	6.30	41.0	-	-	2.66	3.02	2.92	3.32
11	19/24	19/0.50	2.50	3.730	4.72	45.0	-	-	2.99	3.30	3.20	3.58
10	19/22	19/0.65	3.25	6.304	2.99	55.0	-	-	3.73	4.03	3.96	4.34
10	37/26	37/0.40	2.80	4.649	3.90	50.0	-	-	3.22	3.58	3.47	3.88
8	133/29	133/0.29	4.29	8.784	2.20	75.0	-	-	-	-	5.05	5.56
6	133/27	133/0.36	5.41	13.537	1.40	100.0	-	-	-	-	6.42	6.93
