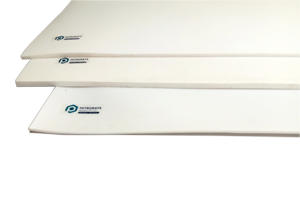

PTFE SHEETS

Petrorays brings to you a wide range of Virgin PTFE Sheet (Moulded & skived).

PTFE with its versatile characteristics like wide temperature withstanding capacity From -180^oC to +260^oC, chemically inert, excellent dielectric properties, low water absorption, lowest co-efficient of friction, resistance to ultra violets rays, non adhesive, non-ageing etc. Has wide industrial applications in Chemicals, Petrochemicals, Bio-medical, Electrical, Electronic, Mechanical, Aeronautical, Environmental, Defence & space engineering applications.

PTFE SHEET (MOULDED):

Thickness : 3.00mm to 100mm
Width : 300mm to 1500mm.
Make to Order : Other Thickness, length & width are available as per customer's requirements
Filled Grades : Glass fibres, Carbon, Graphite, Molybdenum disulphide & Bronze

PTFE SHEET (SKIVED):

Thickness : 0.10mm to 6mm.
Width : 300mm to 2000mm
Make to Order : Other Thickness, length & width are available as per customer's requirements
Filled Grades : Glass fibres, Carbon, Graphite, Molybdenum disulphide & Bronze

PTFE Gasketing material : Gaskets, Washers, O/D/V/U rings, Piston Rings.
PTFE Ball Valves Seats / Seals / Diaphragms.
PTFE Low Friction pads, bearing pads for machine tools guide ways and slide ways.
PTFE Bearings for Conveyor belts.
PTFE Capacitors film.
PTFE Thin walled spaghetti tubing for insulation in aircraft and space vehicles
PTFE Barb Insulators.
PTFE Connectors.

One of the most stable thermal plastic, functions from -180^oC to + 260^oC.
Resistance to virtually all corrosive material, Moisture & U.V.
Very low co-efficient of friction.
Non-stick, Non-flammable, Non-toxic.
Excellent dielectric properties & tensile strength even at low temperatures.
Teflon sheet is approved by the Food and Drug Administration & can be used food, beverage, cosmetics and pharmaceutical applications.

Composition: PTFE (Poly Tetra Fluoro Ethylene)(Teflon).
Specific Gravity: 2.17 gms / Cm³.
Tensile Strength: 210-350 Kgf / Cm².
Elongation: 250-400%.
Hardness: 52-58% Shore D.
Water Absorption: 0.01
Heat Resistance: -250^oC to +260^oC

GRADES OF PTFE	FILLER CONTENTS	PROPRERTIES
Pure PTFE	0%	Excellent chemical resistance, Outstanding Electrical properties, Excellent Flexural properties.
Glass filled PTFE	15-25%	High compressive strength, Excellent chemical resistance, Better wear resistance.
Carbon Filled PTFE	25-35%	Lower coefficient of friction, High compressive strength, Better wear resistance, Better electrical conductivity.
Graphite filled PTFE	15%	Better chemical resistance, High compressive strength, Better wear resistance, Better electrical conductivity, Improved frictional properties.
Bronze filled PTFE	40-60%	Better thermal conductivity, Lower coefficient of friction, High compressive strength, Excellent wear resistance, Excellent chemical resistance.
