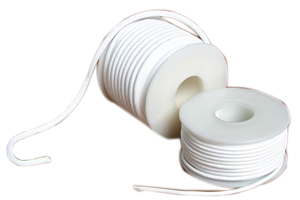

STYLE - 1014 PTFE VALVE SEAL

Construction: Ptfe valve Seal is provided with double construction of 100% PTFE core with spiral wrapping of PTFE tape.

Technical Parameters:

APPLICATIONS: The core fills all voids and confirms to uneven spindles and flanges while the spiral wrapping of PTFE Tape prevents extrusion at both ends of the spindle. Our teams are manufacturers, suppliers and exporters of ptfe valve seal in Mumbai, India to all over the world. Teflon valve seals are widely recommended for use on valves in various industries for obtaining practically zero Leakage. Can also be used in place of gaskets in flanged joint.

✔	Recommended	✖	Limited Recommendable

INSTALLATIONS INSTRUCTIONS FOR PACKINGS

1	When rings are to be formed from continuous length of packing, spirally wrap the packing around a rod of diameter equivalent to the valve spindle. Cut the required number of rings to fill the packing space, with a sharp knife to obtain good butt joints.
2	Remove all old packing carefully.
3	Clean properly all the surfaces that will be in constant contact with the packing and if possible apply lubricant. Check gland and neck bushes and spindle or shaft surface for wear and repair if necessary.
4	Place the first ring around the spindle or shaft by opening to an “s” configuration to ensure that the ring is not damaged.
5	First partially enter both ends of the first ring simultaneously into the stuffing box and then insert the remaining part of the rings. After that firmly push it to the bottom of the stuffing box.
6	Similarly insert other rings and ensure that the joints are at 90^o. N.B: rings must be fitted individually and not as a set

FOR PUMPS APPLICATIONS

1	When all the rings have been fitted to fill the stuffing box, fit the gland follower and tighten the gland nuts to level the gland spigot. Tighten up to finger tightness only, then ptfe valve seal thread, loose it back & again tighten up to finger tightness again. (when storage is anticipated the gland should be left slack.) DO NOT OVERTIGHTEN.
2	Run pump up to operating speed for 10 to 15 minutes. If there is no leakage, stop pump, and loosen gland further. Repeat until leakage occurs. The controlled leakage, essential for lubrications purpose, can then be obtained by running the pump and evenly tightening the gland nut in increments of two threads until approximately one drop every few seconds is obtained. Approximately 15 minutes should be left between successive adjustments.

FOR VALVES

1	When all the rings have been fitted to fill the stuffing box, fit the gland follower and tighten the gland nuts to level the gland spigot. Tighten evenly until spindle has been tightly gripped then ease off the gland nuts so that the spindle will just turn. The system pressure can now be introduced.
2	After a few hours service it is advisable to check the gland adjustment for any looseness that may have taken place due to initial setting in.
