Non-Asbestos Gland Packings

STYLE - 1090 PURE PTFE / PTFE - GRAPHITE PUTTY

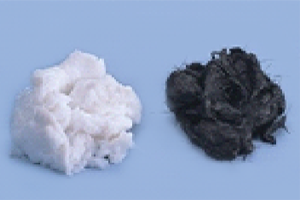

Graphite Putty
  • Construction: A paste made from special grade PTFE or special grade PTFE bonded with high purity Graphite, and a balanced compound of various oils, greases and binders.

PTFE PUTTY:

  • Temperature: -100oC to +260oC
  • pH Range: 0-12
  • Pressure: 100 Kg/Cm2
  • Velocity: 5 Meters / Second

PTFE PUTTY:

  • Temperature: -100oC to +300oC
  • pH Range: 0-12
  • Pressure: 100 Kg/Cm2
  • Velocity: 12 Meters / Second
  • APPLICATIONS: This self-lubricating putty has excellent thermal and chemical resistance, and reduces friction on shafts.It is widely used on scored shafts and valve steam, in pump valves, rectors, agitators, etc.It is recommended to use this putty with our other packings anti extrusion rings of Style 1041, 1042, 1051, 1061, 1071, 1082 & 1083.
Water Acidic Gas Concentrated Alkalis   Mineral Oil & Grease
Steam Volatile Hydrocarbon Solvents Paint Varnish
Hydrogen Neutral Solutions Amines & Nitrates Bitumen
Oxygen   Concentrated Acids   Synthetic oils Abrasive media
Recommended Limited Recommendable
